Taramps DS 800 X 2
Περιγραφή

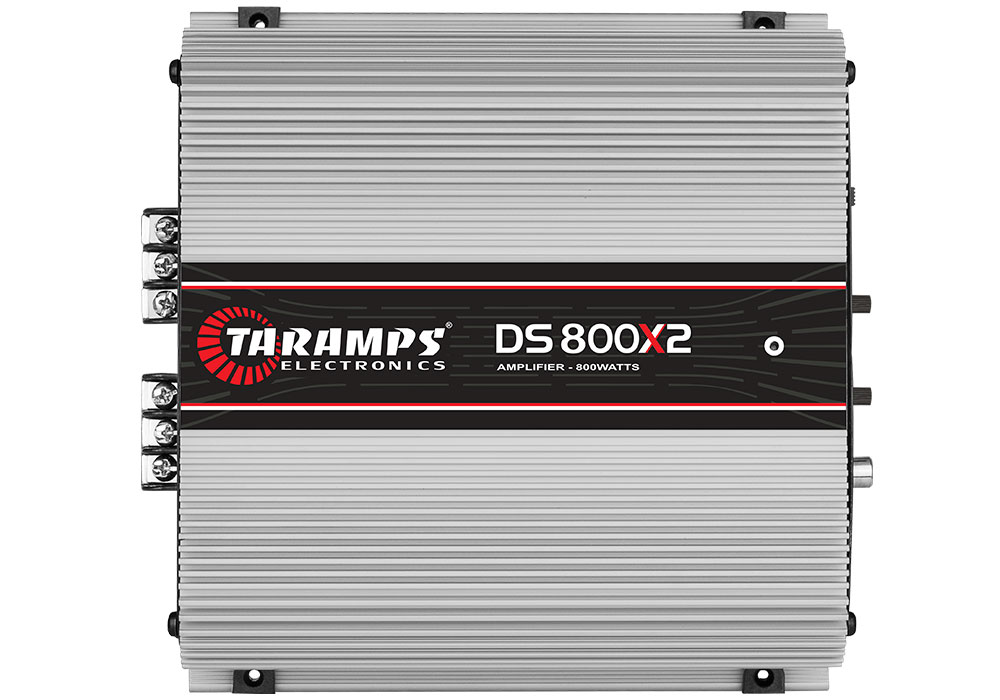

The DS 800 × 2 amplifier is developed with the highest technology and performance for automotive sound systems.
It is stereo, with maximum power of 800Watts RMS with impedance of 2 OHMS, and 2 channels of 400W RMS and 1 channel BRIDGE
with 800W in 4 OHMS. The DS 800 × 2 is FULL RANGE playing all frequencies in the right size for you.
| Operation class | (PT) Classe D |
|---|---|
| Number of Channels | (PT) 02 |
| Maximum power | (PT) @ 12,6 VDC - 2 OHMS: 800W RMS (2 x 400W RMS) @ 12,6 VDC - 4 OHMS: 500W RMS (2 x 250W RMS) @ 12,6 VDC - 8 OHMS: 240W RMS (2 x 120W |
| Input Sensitivity | (PT) 250mV |
| Signal to Noise Ratio | (PT) >96dB |
| Frequency response | (PT) 10Hz a 22KHz(-3dB) |
| Crossover high pass (HPF) | (PT) 80Hz a 2,2KHz (-6dB/8ª) Variável |
| Crossover low pass (LPF) | (PT) 80Hz(-12dB/8ª) Fixo |
| Efficiency | (PT) 83% |
| Input Impedance | (PT) 18K OHMS |
| Output Impedance | (PT) 2 OHMS |
| Protection system | (PT) Curto na Saída / Tensão de Alimentação Baixa |
| Min. Supply Voltage | (PT) 9VDC |
| Maximum Power Supply Voltage | (PT) 16VDC |
| Consumption at rest | (PT) 0,85A |
| Maximum music consumption | (PT) @12,6VDC 38A |
| Maximum consumption in sinusoidal signal | (PT) @12,6VDC 77A |
| Dimensions (H x W x D) mm | (PT) 184 x 54 x 190mm |
| Weight | (PT) 1,38Kg |
