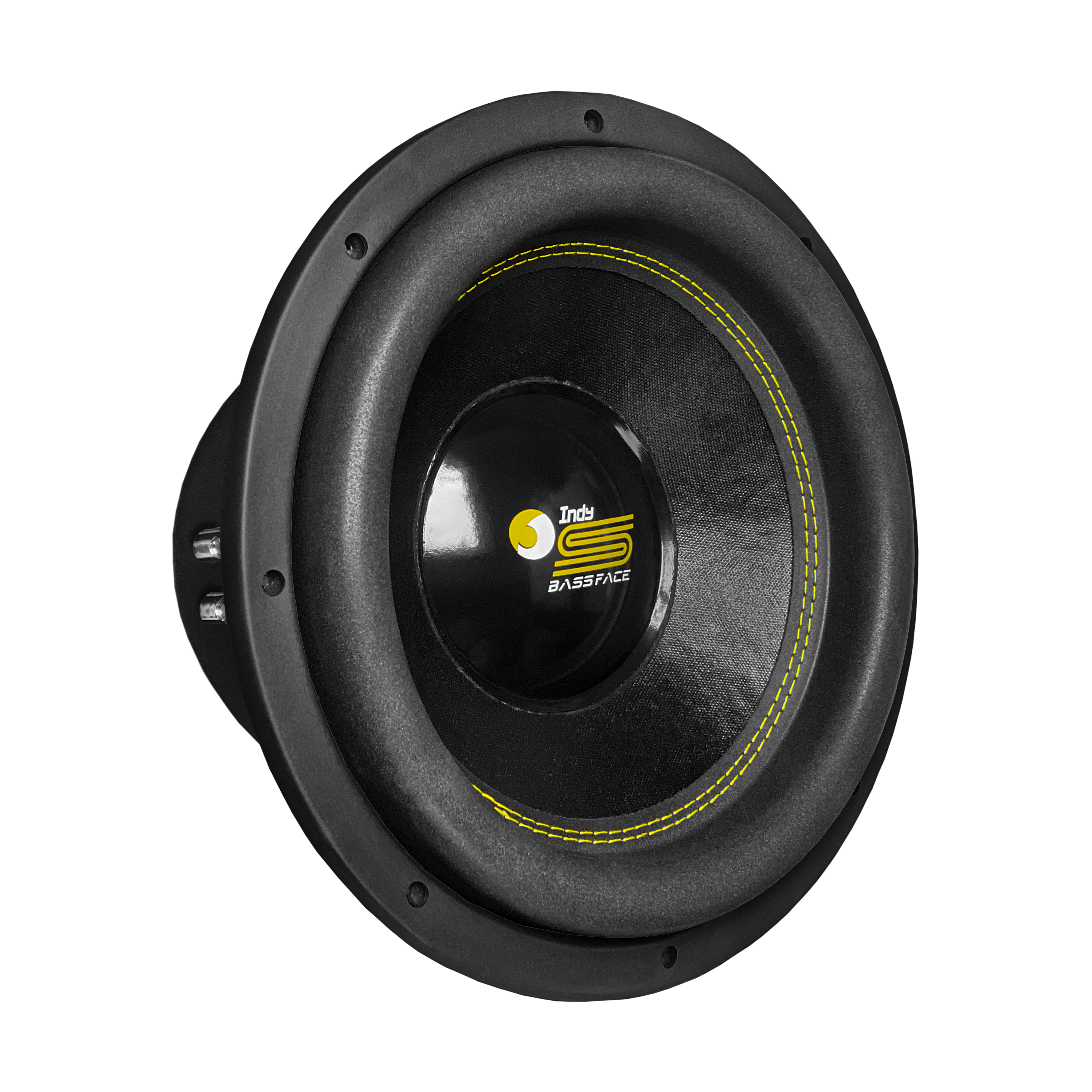

Bass Face IndyS12/2 12'' Dual2 Ohm Subwoofer 1300w RMS
Τιμή πώλησης 210,00 €
Εκπτωση
(περιέχει ΦΠΑ)40,65 €
Τιμή / λ.:


Preloader

Introducing the Bassface Indy S - first of many lines to be developed in our own facility here in the UK by our new engineering team.This is a brand new design - not a single part of the Indy S is carried over fromprevious models. We literally started with a blank sheet of paper and engineered everything to offer the best possible reliability and performance for a woofer at this price point.Many prototypes, re-designs and modifications were made and a tremendous amount of reliability testing was undertaken in order to ensure outstanding longevity. Using custom designed coils and spiders tuned to each exact model we were able to develop for excellent excursion and power handling while implementing measures to prevent coil rub.The motor venting has been carefully designed to offer a good balance between noise reduction and cooling efficiency. The build of the woofer also incorporates some measures to add additional durability for extreme use. The high roll surround was chosen to allow to peak excursion while maintaining good cone area. In normal use the surround will not be put to its maximum limits - this helps to improve longevity. Dual leads add additional failsafe.The added bead of glue above and below the coil prevents separation of the coil when used in extreme situations. This is a useful feature for those that use this woofer for SPL burps.Oversized 4 AWG terminals make for easy installation and allow easy use of multiple cables to the one terminal when running multiple woofer configurations. The suspension, spiders and build of this woofer along with the over specified X-Mech allow safe use in almost ANY enclosure; bandpass, vented, sealed - the IndyS will cope with them all. The single stipulation is that it WILL NOT work in a free air/infinte baffle configuration. For keen enthusiasts this woofer offers good musicality at an affordable price point whilst maintaining great power handling and surprisingly good deep bass performance.Indy S is the Swiss Army Knife subwoofer.We also offer easy use recone kits that come with the shim tool needed at an affordable price for experienced users in competition scenarios.

Key Facts

Product Category Subwoofers
Version 1
Series Indy
Date Modified 15/10/2020
Barcode 685757152365
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 10000
Product Height (mm) 295
Product Length (mm) 377
Product Width (mm) 377
Complete Product Pack Weight (g) 13000
Retail Carton L (mm) 377
Retail Carton W (mm) 377
Retail Carton H (mm) 295
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

Speaker Data


Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 1300
Overall Diameter (mm) 316
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 177
Installation Cutout Diameter (mm) 280
Overall Depth (mm) 207
Mounting Depth (mm) 210
Front Protrusion From Mounting Plane (mm) 30
Optimum Frequency Range (Hz) 20-80
Impedance (Ohm) (Nominal) 2+2
Total Magnet Weight (Oz) 144
Magnet Size 170*25
Magnet Type Y30
Magnet Qty 2
Top Plate thickness (mm) 10
Back Plate thickness (mm) 8 And Bump
Recommended Cable 8AWG/OFC
Recommended Bass Enclosure Type Ported/Sealed
Recommended Bass Enclosure Volume (CuFt) 1-2.5
Recommended Bass Enclosure Tuning Frequncy (Hz) 32
Recommended Box Design Credit Bassface Distribution Ltd
Voice Coil Former Spec Aluminium
Voice Coil Type Round Wire
Voice Coil Internal Diameter (mm) 76.5
Voice Coil Winding Hight (mm) 36
Voice Coil Winding (Layers) 4
Cone Type Non Pressed Paper
Sipder Compliance Medium
Spider Type Progressive
Spider Diameter (mm) 188
Spider Design 1x1, Spacer, 1x1
Surround Tall Smooth
Surround Material Foam
Tinsel Wire Double Oversized Round Wire Stitched
Terminal 4 AWG Push

Technical Highlights


  • Custom tooled spiders for added coil control
  • High roll surround to allow for high excursion and cone area
  • Soft suspension for deep low notes
  • Light weight copper coated coil for a more musical response
  • Glue reinforced coil to prevent separation
  • Oversized 4 AWG inputs for easy use
  • Dual tinsel leads for fail-safe in extreme use
  • Extreme Duty Non Pressed Paper Cone

TS Parameters


Revc (Ohm) 3.68
Fo (Hz) 31
Sd (Cm sq) 530.93
BL (T m) 18.426
Qms 6.042
Qes 0.581
Qts 0.53
SPL (Db) 84.98
Vas (Ltr) 38.035
Cms (uM/N) 0.095
Krm (Ohm) 0.0018
Erm 1.04
Mms (g) 274.267
MMd (g) 260.443
Kxm (mOhm) 26.6
Exm 0.8
Xmax Both Way Total (mm) 25
Xmech Both Way Total (mm) 45
EBP <span style="font-family: comic sa
